Inside GMI: Claude and ML.NET in production

The big picture

A report starts deterministic and ends conversational. Gmi.ReportEngine.Console orchestrates jobs (four concurrent) and spawns Gmi.ReportGeneratorAlpha.Console per report. That generator pulls fundamentals from Financial Modeling Prep, runs the ML.NET forecasting layer, and writes Excel and JSON outputs to Azure Blob Storage. Only afterward, on demand, does Claude enter — analyzing the documents a user chooses, under a hard cost cap.

flowchart TD
    ENGINE["Gmi.ReportEngine.Console -- orchestrator, 4 concurrent"] --> ALPHA["Gmi.ReportGeneratorAlpha.Console -- one per report"]
    ALPHA -->|"13 calls per symbol, 3000 per min token bucket"| FMP["Financial Modeling Prep API"]
    FMP --> ALPHA
    ALPHA --> ML["ML.NET Forecasting Service"]
    ML --> OUT["ml-forecasts.xlsx plus JSON companions"]
    ALPHA --> BLOB["Azure Blob Storage"]
    OUT --> BLOB
    BLOB --> NOTIFY["Email and SMS notify user"]
    BLOB -.->|"on demand, user selected files"| CLAUDE["Claude analysis layer"]

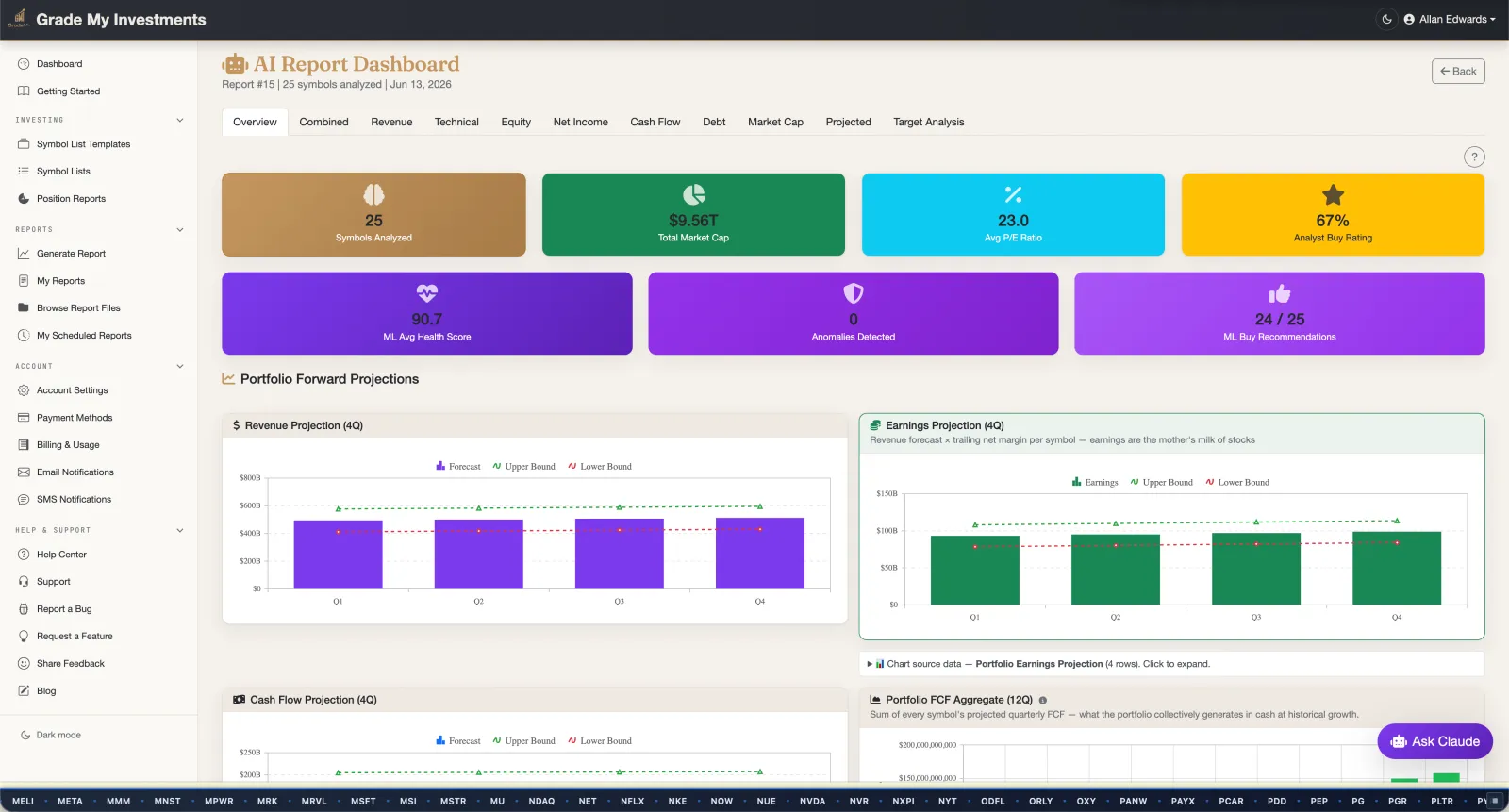

The ML.NET engine — the deterministic grade

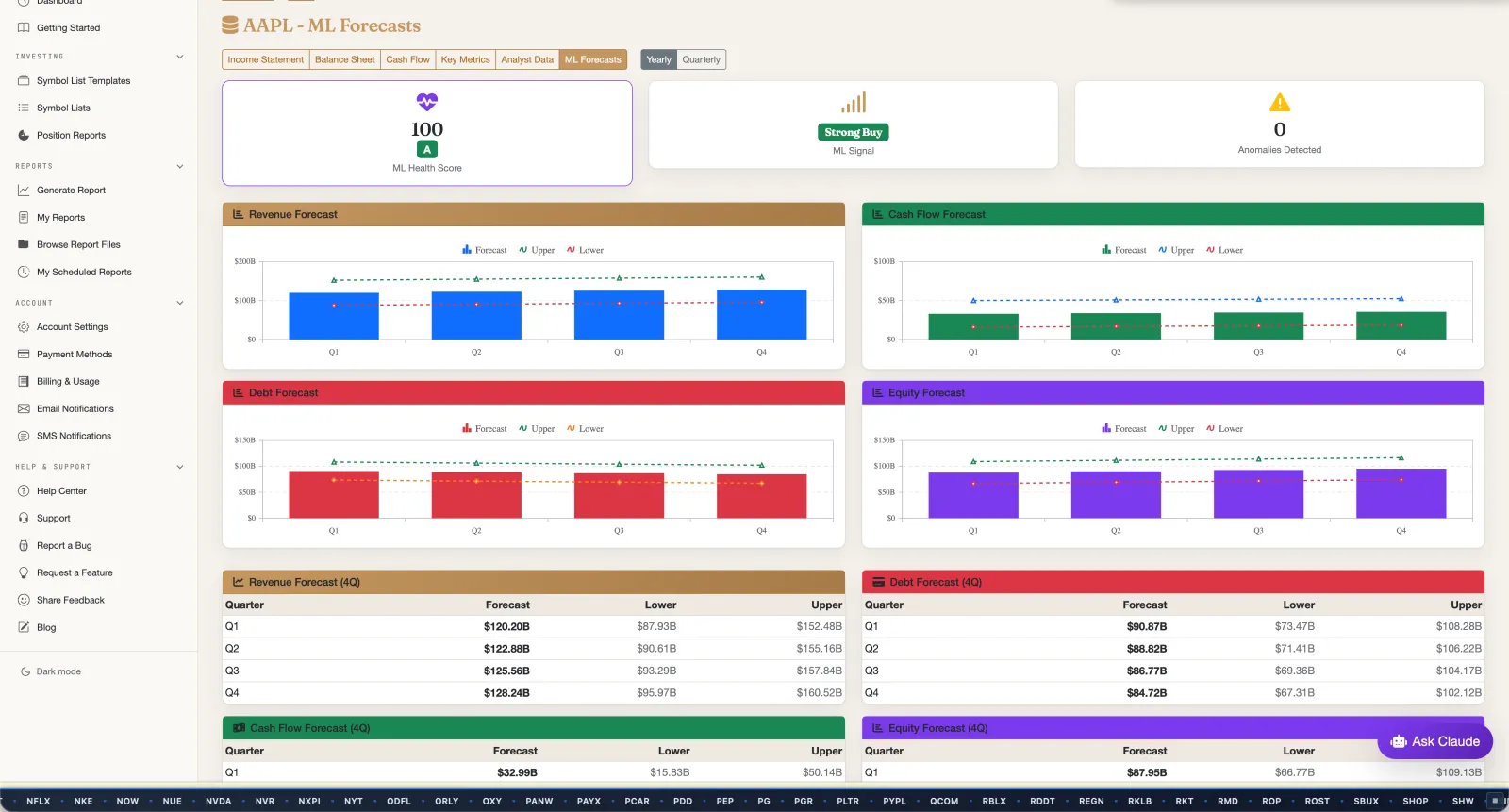

The grade is not an LLM opinion. ML.NET (Microsoft.ML 5.0 with Microsoft.ML.TimeSeries, seeded at 0 for reproducibility) drives every number that has to be repeatable. Singular Spectrum Analysis (SSA) forecasts revenue, debt, cash flow, and shareholder equity four quarters out with 95% confidence intervals; if SSA can’t train on the available history, it falls back to linear regression (1.96 × standard error). A separate SDCA multiclass classifier turns daily prices plus RSI, MACD, and volatility into a Bullish / Neutral / Bearish sentiment signal, and SSA spike detection flags anomalies in debt-to-equity. Those feed a composite 0–100 health score and the familiar A+ to F rating.

flowchart TD
    Q["Quarterly financials"] --> SSA["SSA forecast -- 4 quarters, 95 percent CI"]
    SSA -->|"if training fails"| LR["Linear regression fallback -- 1.96 x std error"]
    SSA --> F["Revenue, Debt, Cash Flow, Equity forecasts"]
    LR --> F
    P["Daily prices plus RSI, MACD, volatility"] --> SDCA["SDCA multiclass classifier"]
    SDCA --> SENT["Bullish, Neutral or Bearish"]
    DE["Debt-to-equity ratios"] --> SPIKE["SSA spike anomaly detection"]
    F --> HS["Composite health score, 0 to 100"]
    SENT --> HS
    SPIKE --> HS
    HS --> RATING["Green above 70, Yellow 40 to 70, Red below 40"]


The Claude layer — language and analysis

Where judgment and language help, Claude takes over. A user right-clicks any file from a finished report — PDF, DOCX, XLSX, or an image (handled by the vision model) — and asks for analysis. Cost transparency is the whole point: the API returns a token estimate first, the job is capped at $45, and nothing runs until the user approves the spend. The background Gmi.ClaudeAnalysis.Console then works the queue: polling every 15 seconds, a batch of 5, three concurrent calls behind a SemaphoreSlim, three retries with exponential backoff (5s, 15s, 45s), and graceful 429 handling that honors Anthropic’s Retry-After. Each model can be chosen per job — Haiku for cost-optimized passes, Sonnet as the analysis default, Opus for the deepest reasoning — and results are saved as DOCX and HTML alongside the original file.

sequenceDiagram
    participant U as User
    participant Web as Gmi.ClientWeb.Blazor
    participant Api as Gmi.Api.AzureFunctions
    participant Db as MySQL job queue
    participant Svc as Gmi.ClaudeAnalysis.Console
    participant Cl as Anthropic API
    participant Blob as Azure Blob Storage
    U->>Web: Select report files to analyze
    Web->>Api: POST claude-analysis estimate
    Api-->>Web: Token and cost estimate, 45 dollar cap
    U->>Web: Approve spend
    Web->>Api: POST claude-analysis submit
    Api->>Db: Create job plus per-file requests
    loop Poll 15s, batch of 5, 3 concurrent
        Svc->>Db: Claim pending requests
        Svc->>Cl: Analyze file, max 8192 tokens
        Cl-->>Svc: Structured analysis
        Svc->>Blob: Save DOCX and HTML
    end
    Note over Svc,Cl: 3 retries with backoff 5s 15s 45s, and 429 responses honor Retry-After
    Svc->>Db: Record input and output tokens and cost
    Svc-->>U: Notify complete

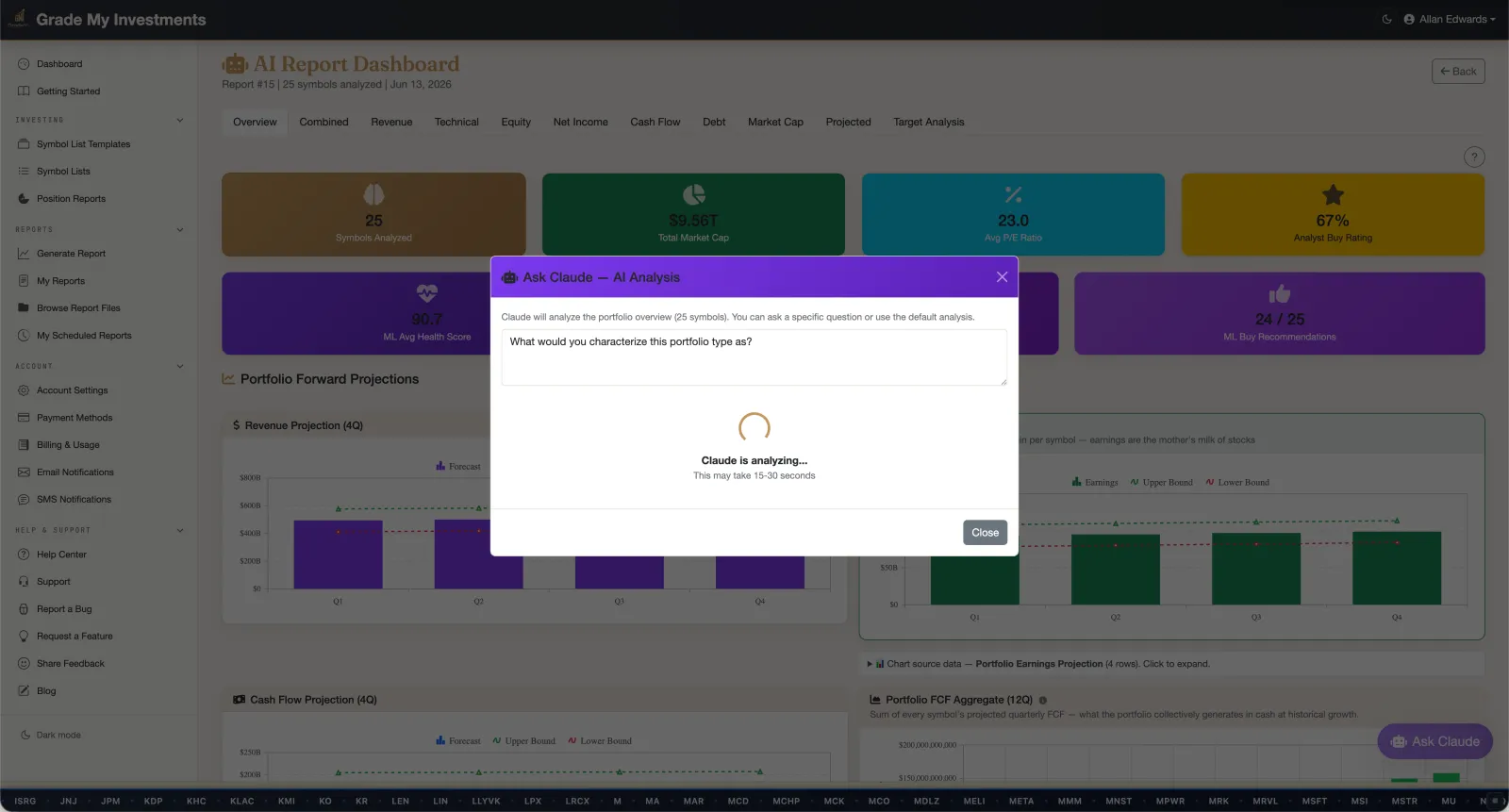

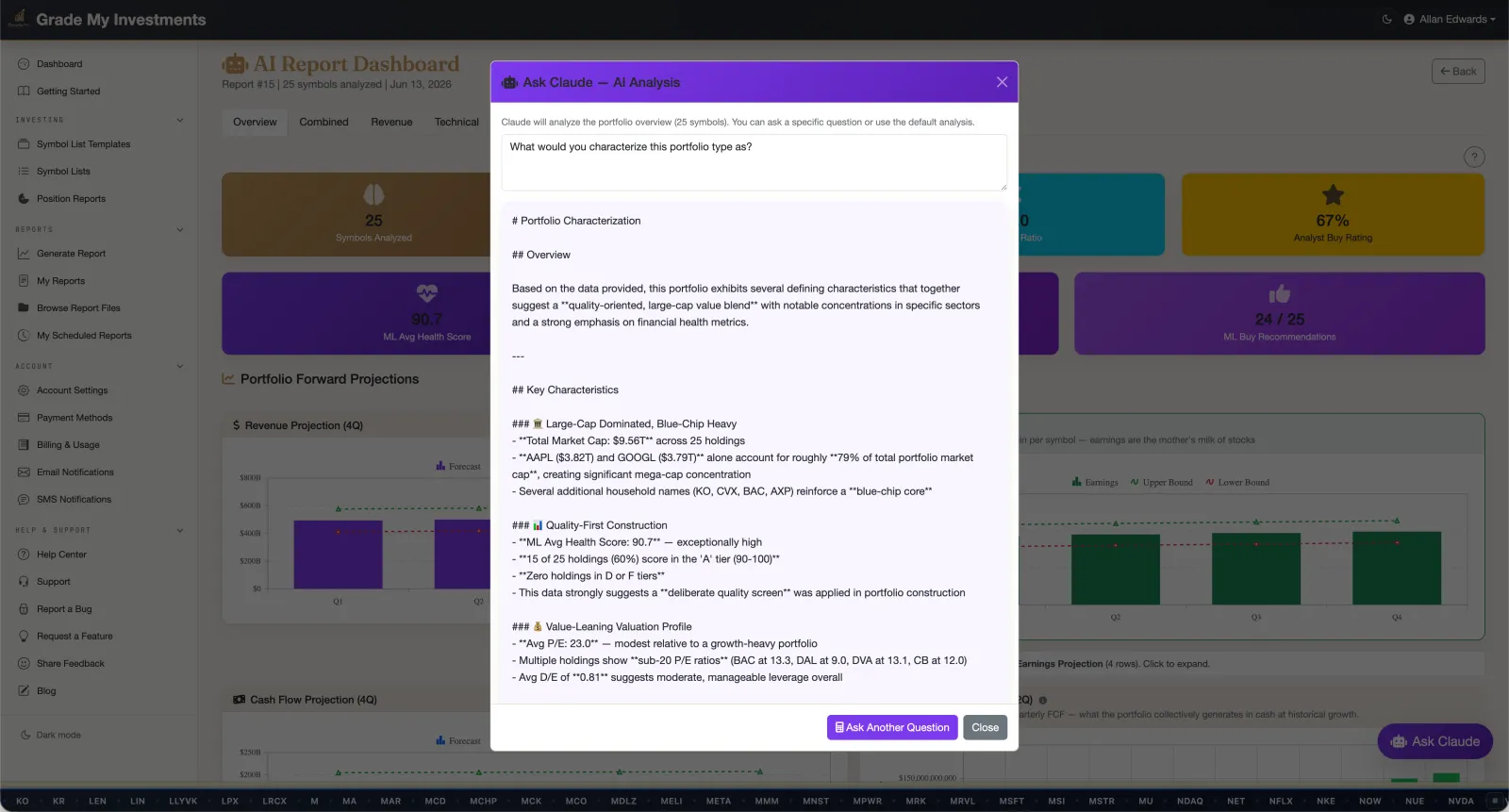

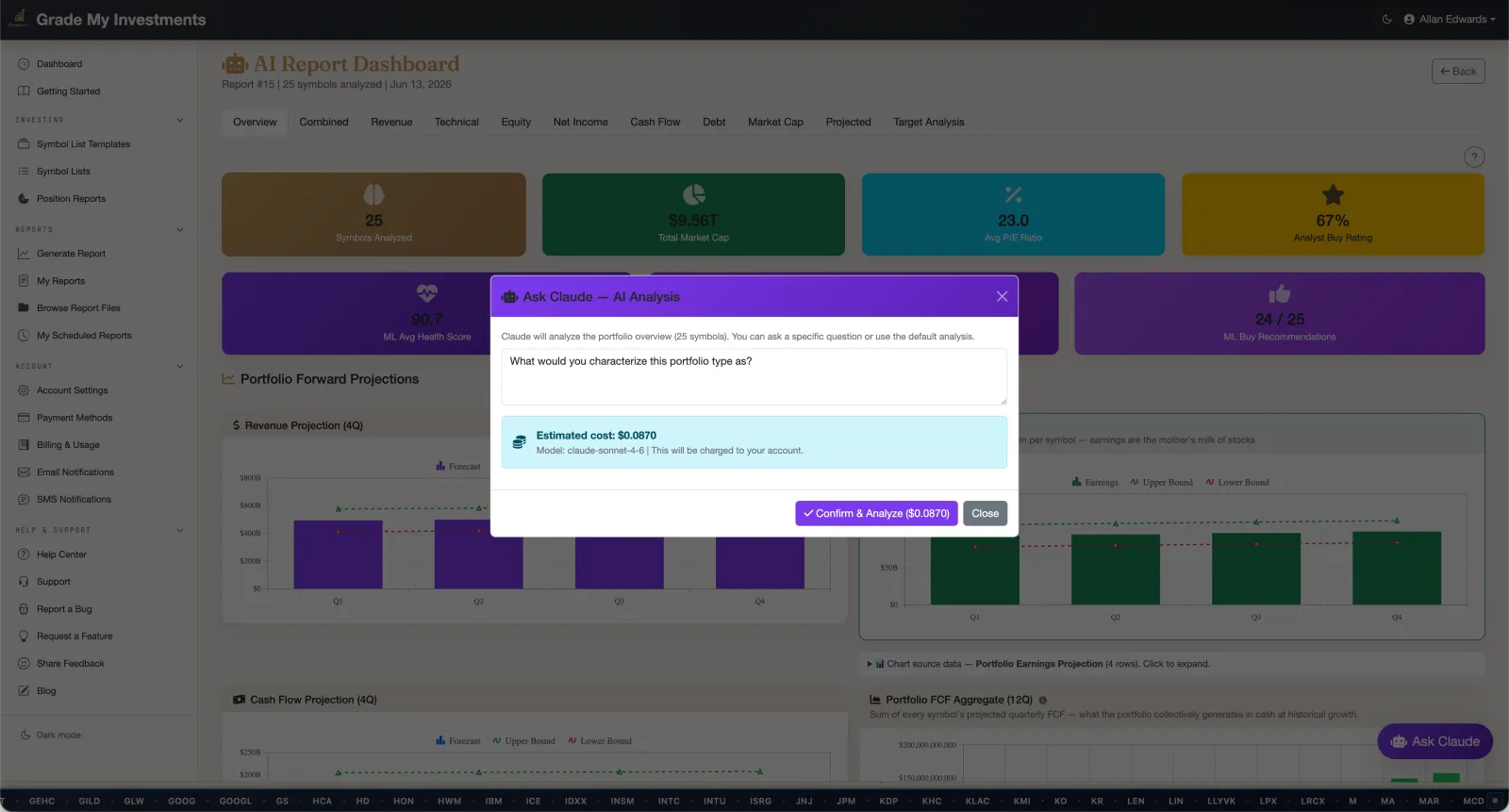

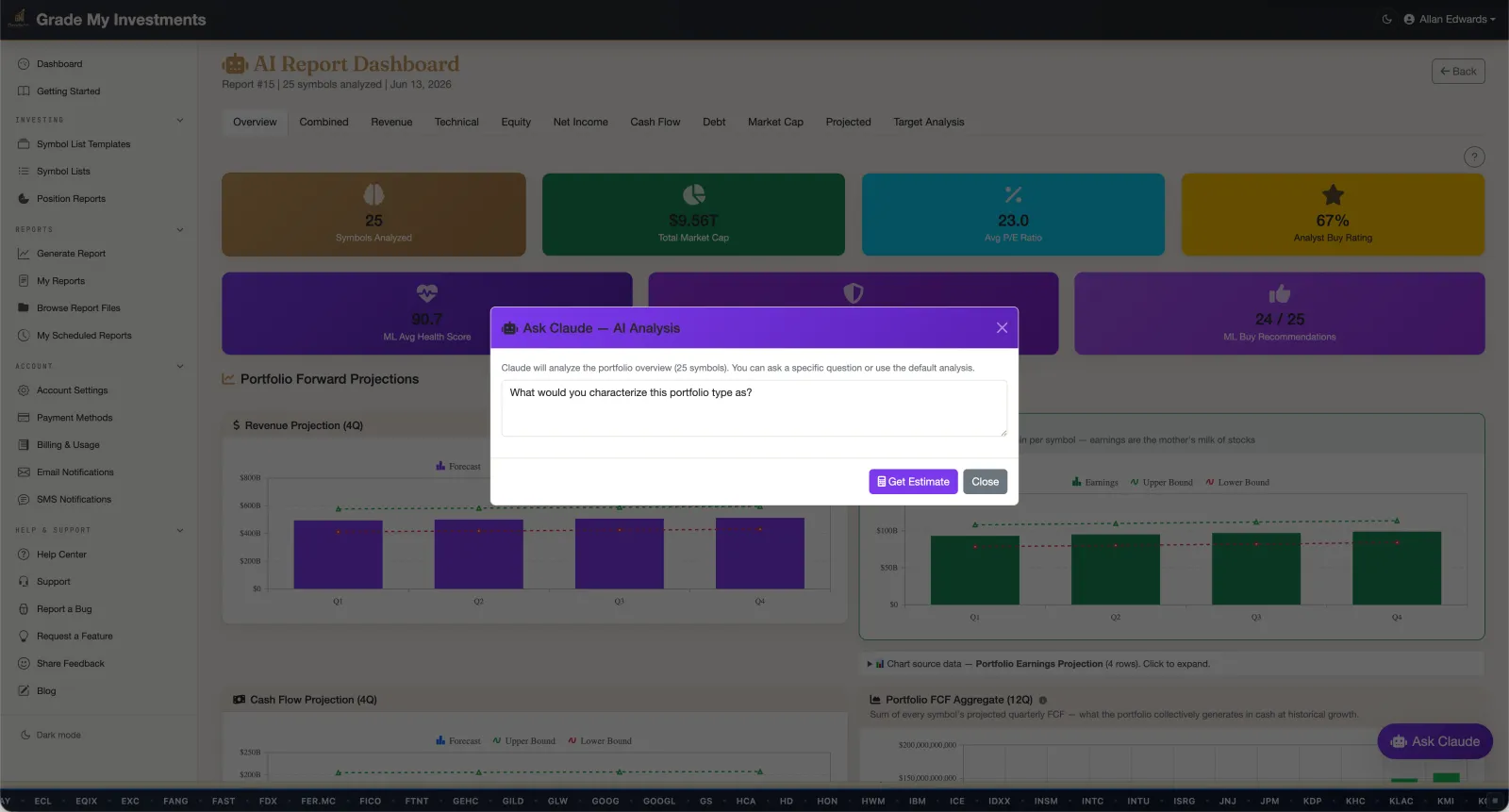

The same estimate-approve-meter pattern powers the conversational “Ask Claude” flow below: a token cost and the chosen model are shown up front, the job runs server-side, and Claude returns a structured result grounded in the report’s numbers.

Cost, safety, and billing

Every Claude call is metered server-side. Token usage is written to a ledger (ClaudeAnalysisJob and ClaudeAnalysisRequest track input tokens, output tokens, and actual cost), priced with a fixed markup, and reconciled against payment by Gmi.BillingEngine.Console and Stripe webhooks guarded by idempotency keys so a retry never double-charges. On the safety side, a strict system prompt keeps Claude in bounds — it is explicitly not an investment advisor, never gives personalized buy/sell recommendations, and appends a compliance disclaimer to every response. The deterministic ML.NET grade, not the model, remains the source of truth.

flowchart TD
    EST["Server-side token estimate"] --> CAP["Enforce 45 dollar per-job cap"]
    CAP --> CALL["Metered Claude calls"]
    CALL --> LEDGER["Usage ledger -- input tokens, output tokens, actual cost"]
    LEDGER --> BILL["Gmi.BillingEngine.Console"]
    BILL --> STRIPE["Stripe"]
    STRIPE -->|"webhook with idempotency key"| RECON["Reconcile payment and usage -- no double charge"]
